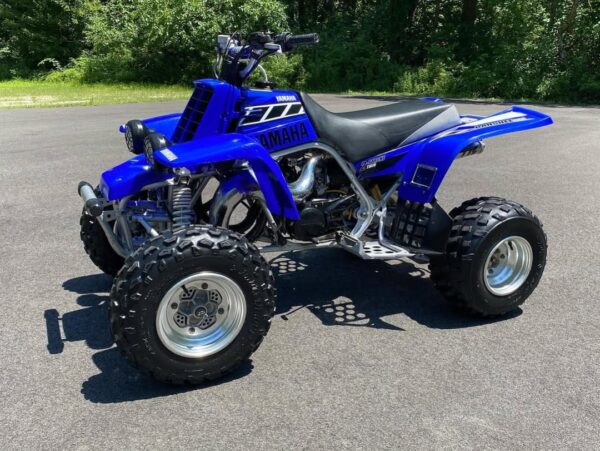

2001 YAMAHA BANSHEE

Model: 2001 Yamaha Banshee 350 (YFZ350) Color: Yamaha Blue () – A highly recognizable and classic factory finish for the Banshee, emphasizing its race-bred heritage.

I. Engine & Drivetrain:

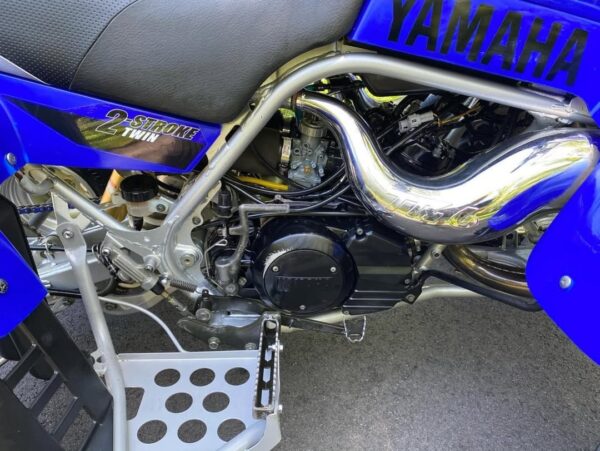

• Engine Type: 347cc (1.9 cu. in.), Liquid-Cooled, Parallel-Twin Cylinder, 2-Stroke
• Bore x Stroke: 64.0 mm x 54.0 mm (2.52 in. x 2.13 in.) – Optimized for high-RPM power and quick revving.
• Compression Ratio: 6.6:1 – Typical for a high-performance two-stroke.
• Induction: Twin Mikuni VM26SS Carburetors (26mm) – Ensures precise fuel delivery and crisp throttle response.
• Ignition System: CDI (Capacitor Discharge Ignition) – Reliable and strong spark for optimal combustion.
• Starting System: Kick Start – Simple, reliable, and keeps weight down.
• Transmission: 6-Speed Manual (Constant Mesh) with Wet Multi-plate Clutch – Allows the rider to keep the engine in its powerful high-RPM range, critical for performance.
• Drive System: 2WD; Chain Drive – Direct and efficient power transfer to the rear wheels.
• Cooling System: Liquid-Cooled – Essential for maintaining optimal engine temperatures during aggressive riding, a key feature for this high-performance twin.
• Exhaust System: Twin Expansion Chambers – Signature Banshee sound, engineered to maximize two-stroke power.

II. Chassis & Suspension:

• Frame Type: Steel Double Cradle Frame – Provides a rigid and durable foundation for aggressive riding.
• Front Suspension: Independent Double Wishbone with 5-Way Preload Adjustable Shocks
  • Front Travel: 9.1 inches (231 mm) – Designed for absorbing impacts and maintaining control at speed.
• Rear Suspension: Swingarm with Piggyback-Type, Preload/Rebound/Compression Adjustable Single Shock
  • Rear Travel: 8.7 inches (221 mm) – Offers excellent rear wheel articulation and dampening for varied terrain.

III. Brakes & Tires:

• Front Brakes: Dual Hydraulic Disc Brakes – Provides strong, consistent, and reliable stopping power.
• Rear Brake: Single Hydraulic Disc Brake – Mounted on the rear axle for effective stopping.
• Front Tires: AT21 x 7-10 (Dunlop KT311) – Designed for aggressive cornering and traction.
• Rear Tires: AT20 x 10-9 (Dunlop KT315) – Offers excellent grip and power transfer.
• Wheels: Steel or Aluminum Alloy (model dependent / often upgraded)

IV. Dimensions & Capacities:

• Overall Length: 73.0 inches (1854 mm)
• Overall Width: 43.3 inches (1100 mm)
• Overall Height: 42.5 inches (1080 mm)
• Seat Height: 31.5 inches (800 mm) – Performance-oriented ergonomics.
• Wheelbase: 50.4 inches (1280 mm)
• Ground Clearance: 5.3 inches (135 mm)
• Wet Weight (including full fluid levels): Approximately 386 lbs (175 kg) – Remarkably light for its power, contributing to its high power-to-weight ratio.
• Fuel Capacity: 3.2 US gallons (12.0 liters) – Allows for extended high-speed runs.

V. Key Features & Highlights:

• Legendary Two-Stroke Powerband: Known for its exhilarating, sudden surge of power in the upper RPM range – not for the faint of heart!
• Iconic Styling: Aggressive, low-slung stance with signature twin “cat eye” headlights and prominent dual exhaust pipes.
• Highly Tunable: Benefited from a massive aftermarket support, allowing for extensive performance modifications and customization.
• Renowned for Sand Dunes: Its lightweight nature and potent power make it an absolute master of dune riding and drag racing.
• Direct & Engaging Ride: Offers a raw, visceral connection between rider and machine, demanding skill and respect.
• Manual Transmission: Provides ultimate control over the power delivery, essential for performance riding.

VI. Ideal Rider & Usage:

• Experienced Riders: The Banshee’s aggressive power delivery and demanding nature make it best suited for riders with significant ATV experience.
• Performance Enthusiasts: Perfect for those seeking maximum speed, acceleration, and a thrilling, adrenaline-fueled ride.
• Primary Terrain: Excels in wide-open spaces, sand dunes, drag strips, and open trails.

VII. Enduring Legacy: The 2001 Yamaha Banshee represents a peak year for this iconic model, firmly established as a legend in the ATV world. Its raw power, distinctive sound, and classic design ensure its status as a highly sought-after collectible and a true benchmark for sport quad performance. Its iconic blue color is particularly beloved by enthusiasts.
